Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1 सेट
MOQ
बातचीत योग्य
कीमत
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
शुद्ध वजन: 4000 किग्रा
अधिकतम कागज का आकार: (एल)760×(डब्ल्यू)590
मिन। शीट का आकार: (एल)200×(डब्ल्यू)240
मशीन का आकार: (एल)550×(डब्ल्यू)130×(एच)180(सेमी)
मशीन गति: 0 ~ 80 मी / मिनट
लैमिनेटिंग तापमान: 80-110 ℃
मूलभूत जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: ECOOGRAPHIX
प्रमाणन: CE,SGS
मॉडल संख्या: वाईएफएमबी750
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: मानक निर्यात पैकिंग
प्रसव के समय: 30 दिन
भुगतान शर्तें: एल/सी,टी/टी
आपूर्ति की क्षमता: 500सेट
उत्पाद विवरण
Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg

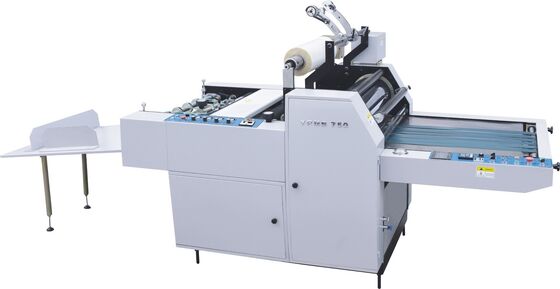

Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
