Name: Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: वीडी3350एल
Price: 50,000.00 USD
Availability: InStock

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1 सेट

MOQ

बातचीत योग्य

कीमत

विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध

विशेषताएं

निर्दिष्टीकरण

अधिकतम रोलर व्यास: 450 मिमी

अधिकतम लेबल चौड़ाई: 330 मिमी

ब्लेड काटना: अधिकतम 4पीसी

कटिंग गति: अधिकतम 27 मी/मिनट

गारंटी: एक वर्ष

वज़न: 1400 किग्रा

अधिकतम चौड़ाई: 288 से 330 मिमी

अनुप्रयोग: डाई कटिंग, लैमिनेटिंग, स्लिटिंग, शीट कटिंग

प्रमुखता देना:

Max 27m/min Cutting Speed Laser Die Cutter

Max 330mm Label Width Digital Die Cutting Machine

Max 4pcs Cutting Blades Label Die Cutter

मूलभूत जानकारी

उत्पत्ति के प्लेस: चीन

ब्रांड नाम: ECOOGRAPHIX

प्रमाणन: CE

मॉडल संख्या: वीडी3350एल

दस्तावेज़: Digital Label Die Cutter VD...0 .pdf

भुगतान & नौवहन नियमों

पैकेजिंग विवरण: मानक निर्यात पैकिंग

प्रसव के समय: लगभग 20 दिन

भुगतान शर्तें: एल/सी, टी/टी

आपूर्ति की क्षमता: 300set

गेलरी

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

उत्पाद विवरण

Digital Roll To Sheet Label Laser Die Cutter With Laminating

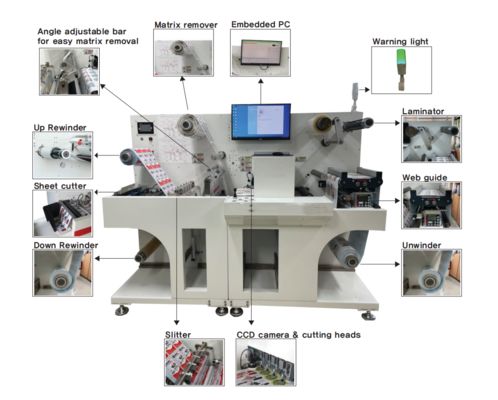

The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.

It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.

With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

Product Features

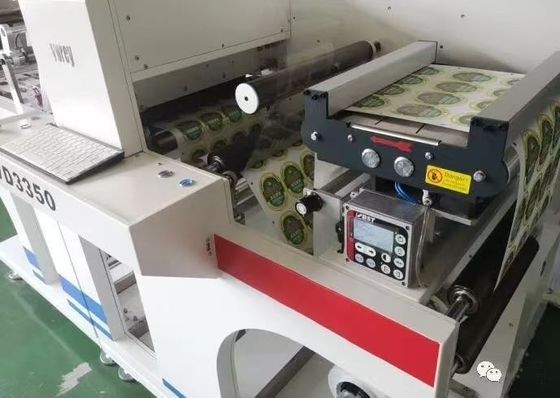

High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

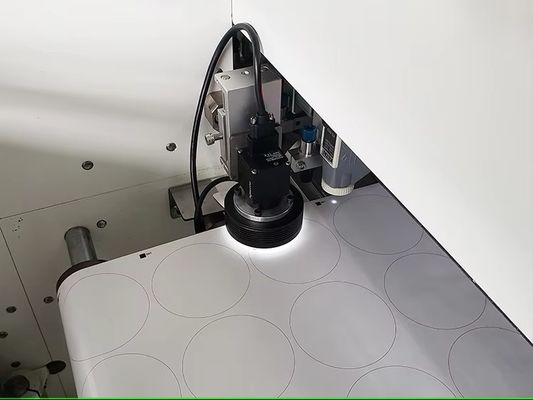

CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
