Roll Label Digital Varnish UV Printing and Cold Foiling Machine
The EcooSpark digital UV varnish printing embellishment machine is the ideal equipment for digital printing machines including HP Indigo, Screen L350, KM Accurio, Xeikon, and Durst. With over 5 years of proven performance, this machine delivers spot coating, cold foiling, relief varnishing, braille printing, and variable data capabilities.
Applications
- Wine Labels
- Cosmetic Labels
- Luxury labels
- Washi tapes
- Braille printing
- Toothpaste tube foiling
Innovation and Intelligent Manufacturing
Utilizing PiezoDOD inkjet print head technology, the EcooSpark delivers high-quality labels at 1440*360 DPI native resolution, with speeds up to 50m/min and print widths up to 450mm.
Key Machine Configurations
- Full Sets of Mitsubishi servers
- HeFeng Corona Treatment
- Web guide and Monitoring System: E+L
- Full Led-UV curing system
- Printing Software: GIS UK
- Auto Cleaning System
- KM 1024i print head
- Multiple sensors for tension control
Available in 288mm, 330mm and 430mm printing width models. Most machines have demonstrated reliable operation for about 5 years with stable performance.
Technical Specifications
| Model |
EcooSpark |
| Printing Technology |
UV Piezo DoD-inkjet |
| Resolution |
Up to 1440*360 dpi |
| Printing Speed |
10m/min - 60m/min (depends on polymer layer thickness) |
| Variable Image System |
PDF, optimized PDF, Optional barcode system |
| Supported Image Standards |
PDF, PDF/VT, TIFF, JPEG, BMP & other database files |
| Substrates |
Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width |
288mm (extendable to 450mm) |
| Polymer |
WB-DS-Clear Polymer |
| Polymer Layer Thickness |
10-180 microns |
| Ink Curing |
Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder Diameter |
Max. 700mm, Core 76mm |
| Rewinder Diameter |
Max. 700mm, Core 76mm |
| Substrates Thickness |
30-400 microns |
| Substrates Width |
330mm |
| Press with Foil Station Dimensions (L*H*W) |
3500mm * 1900mm * 1800mm |
| Operating Environment |
Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity |
| Electrical Requirements |
Voltage: 3*380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production |
| Weight |
2800kg |
Key Advantages
Cost Efficiency
No plate making required, shorter setup time, and cost advantages for end user orders.
Higher Quality
High shining surface finish, repeatable stacking, variable foiling technology, and registration accuracy superior to traditional printing. Achieves "raise effect" or "embossing" through superimposed ink layers with variable heights on the same substrate.
Environment Friendly
Short setup time, simple operation, and VDP design reduce environmental impact.
Multi-process Capability
High turnover rate with controllable, adjustable processes that reduce waste. Completes foiling, convex foiling, spot varnish, reverse varnish, and Braille in one pass. Uses piezoelectric inkjet head with special digital UV varnish for variable spot varnishes with highlight and matte effects in single printing.
EcooSpark digitally implements spot varnish, cold foiling, and embossing processes with high efficiency and low cost, regardless of previous printing processes (offset, screen, flexographic, etc.). The equipment helps complete short to medium length orders quickly while achieving unique visual effects and can integrate with traditional printing processes to create new profit opportunities.

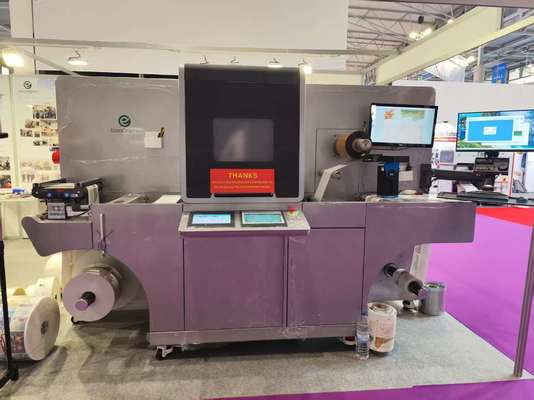

Product Images
