Carton Erecting Machine Single Lan Box Packaging Machine
Model: L800-A
Brief Introduction
EcooGraphix Carton Erecting Machine is designed and manufactured according to high standards, stable and high efficient.
The finished products are automatically counted. It can be customized to do different size and shaped boxes through changing mold. (hamburger box, fried chips box, paper tray, noodle box, lunch box and other food container).
Specification
| Type | L800-A |
| Max. Production capacity | 200 PCS/min (It depends on paper material, size and box type) |
| Suitable Material | 150-400gsm paper board,corrugated board paper with thickness not exceed 1.5 mm |
| Blank length(L) | 100-450mm |
| Blank width(B) | 100-680mm |
| Height of side flaps(H) | 15mm-230mm |
| Height of side flaps+lid(H1) | 50mm-230mm |
| Conicity | 5°-40° |
| Air Pressure | 0.6 Mpa dry and clean compressed air |
| Total Power: | 8 KW |
| Voltage | 380V/ 50Hz |
More Details
L800-A adopts servo system to control the punching head. So L800-A is easier to change different boxs.
L800-A is better to make eight corners boxes.

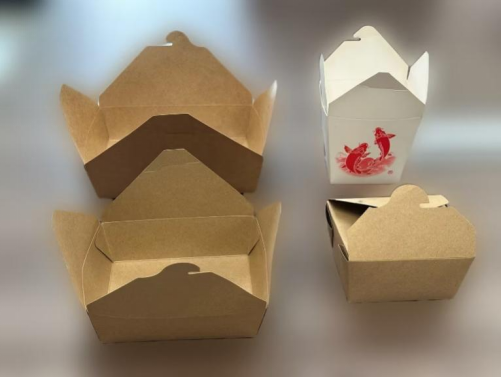

Box Type
